FNIRSI DSO-152 DSO-153 DSO510 Handheld Digital Oscilloscope 200KHz/1MHz/10MHz Bandwidth
3,249.00TL
İndirimli fiyat
3,249.00TL
Normal fiyat
5,499.00TL
Vergiler dahildir.
SPECIFICATIONS
Battery Included: Yes
Brand Name: FNIRSI
High-concerned chemical: None
Origin: Mainland China

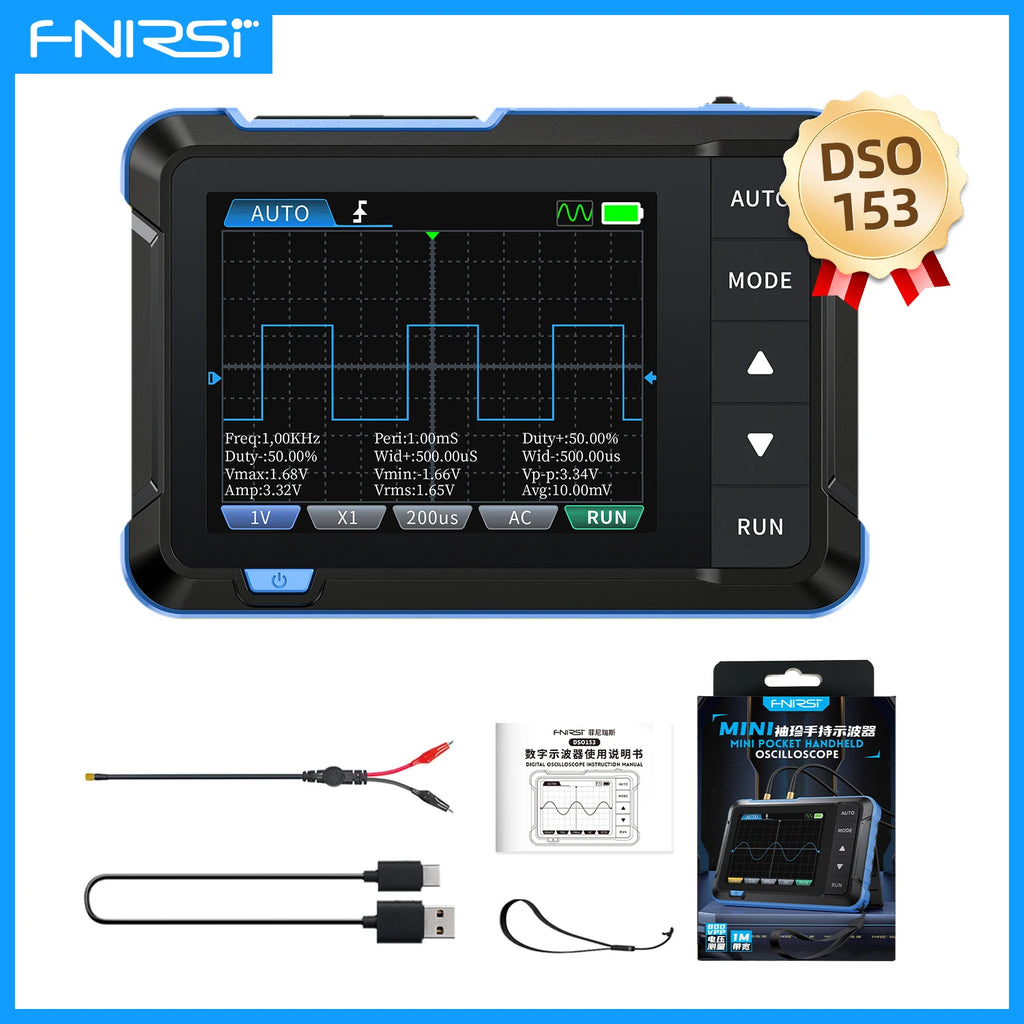

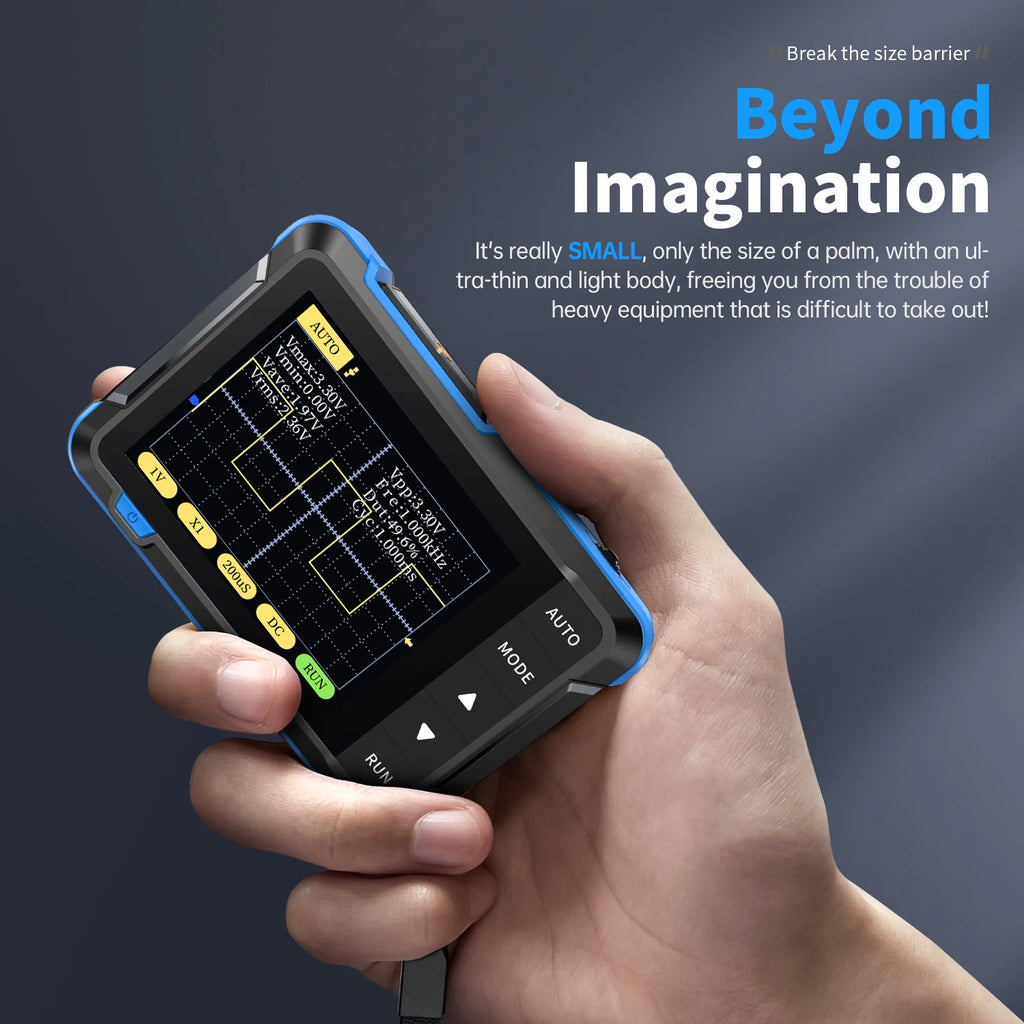

DSO-153 is a highly practical and cost-effective handheld Electronic measuring instruments launched by our company, targeting the maintenance industry and development education industry.
This Electronic measuring instruments has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

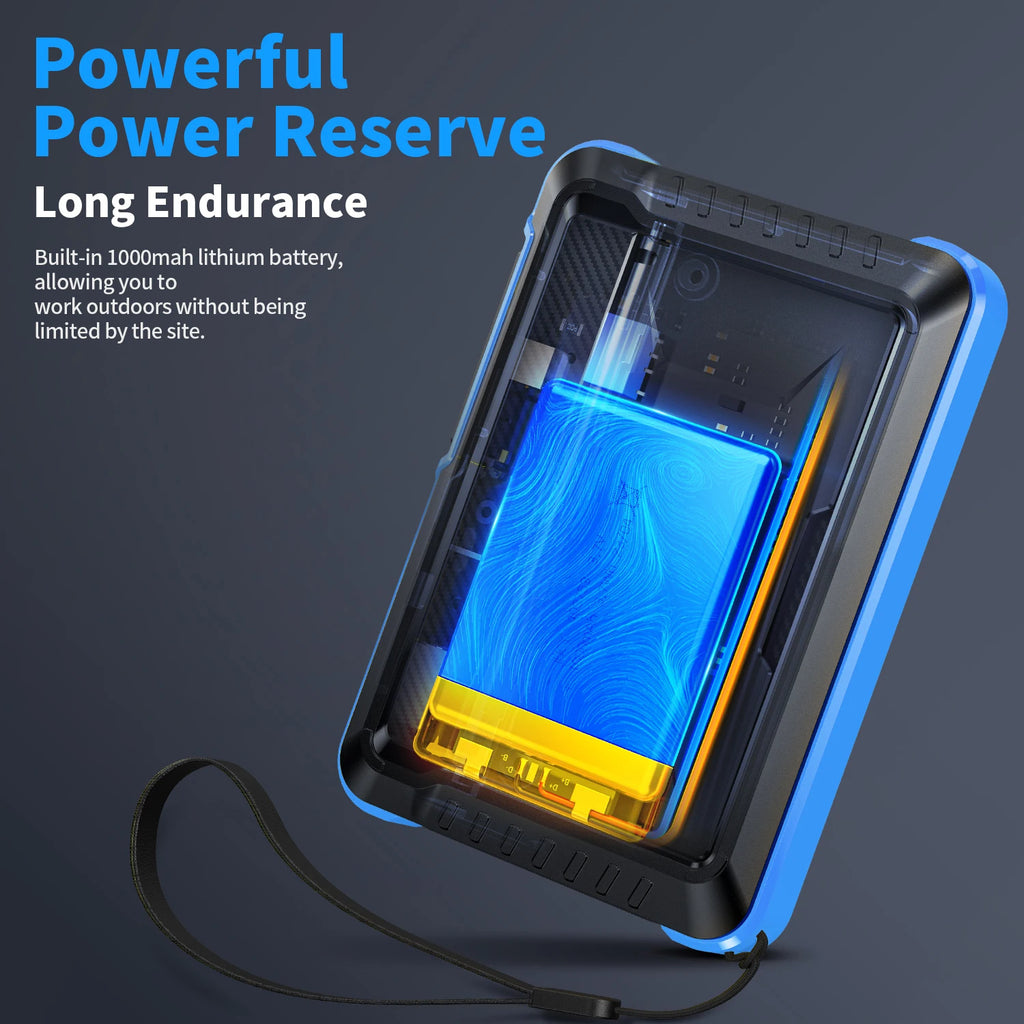

In addition, it also comes with multiple functions signal source (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
* DS-O153 Mini Electronic measuring instruments*
Sampling rate：5MSa/s
Bandwidth：1MHz
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way
Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC
* Signal Source *
Frequency：0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：100g

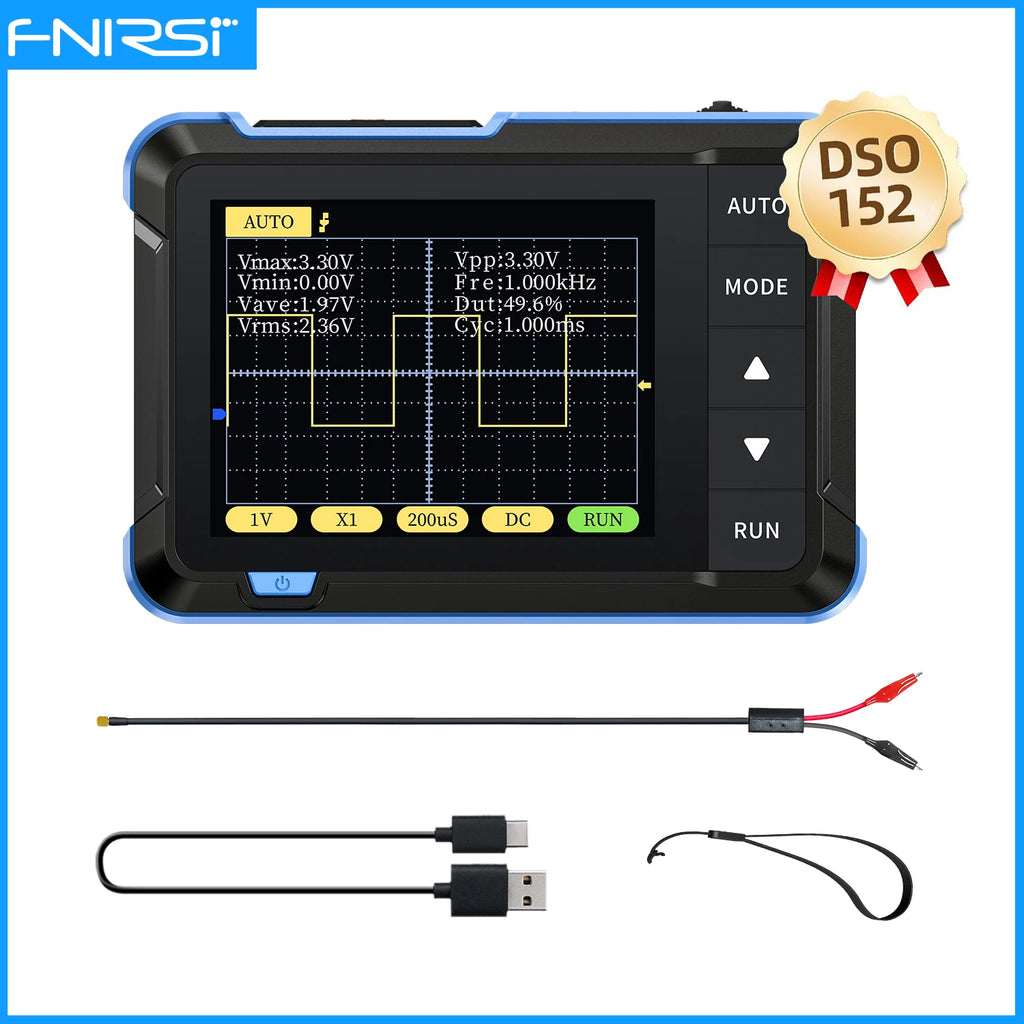

NO.1(Standard)
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

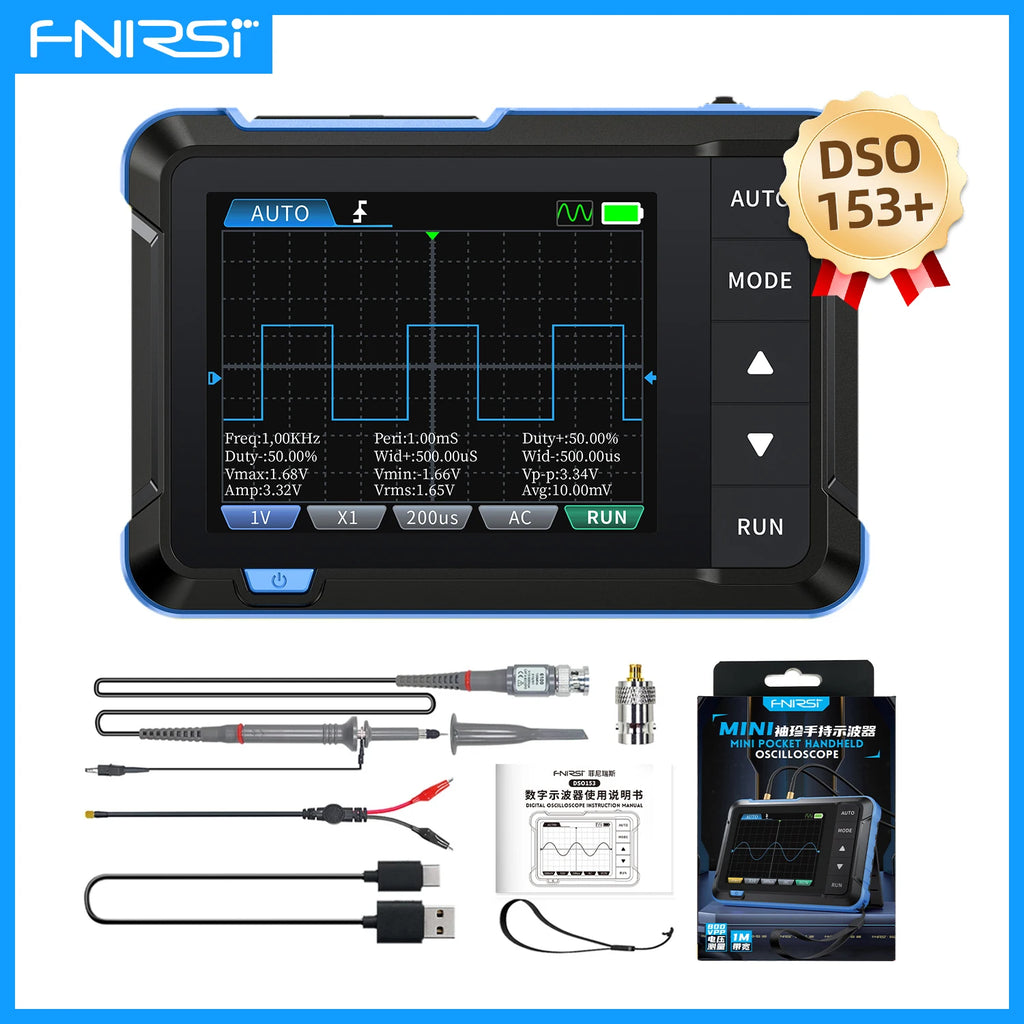

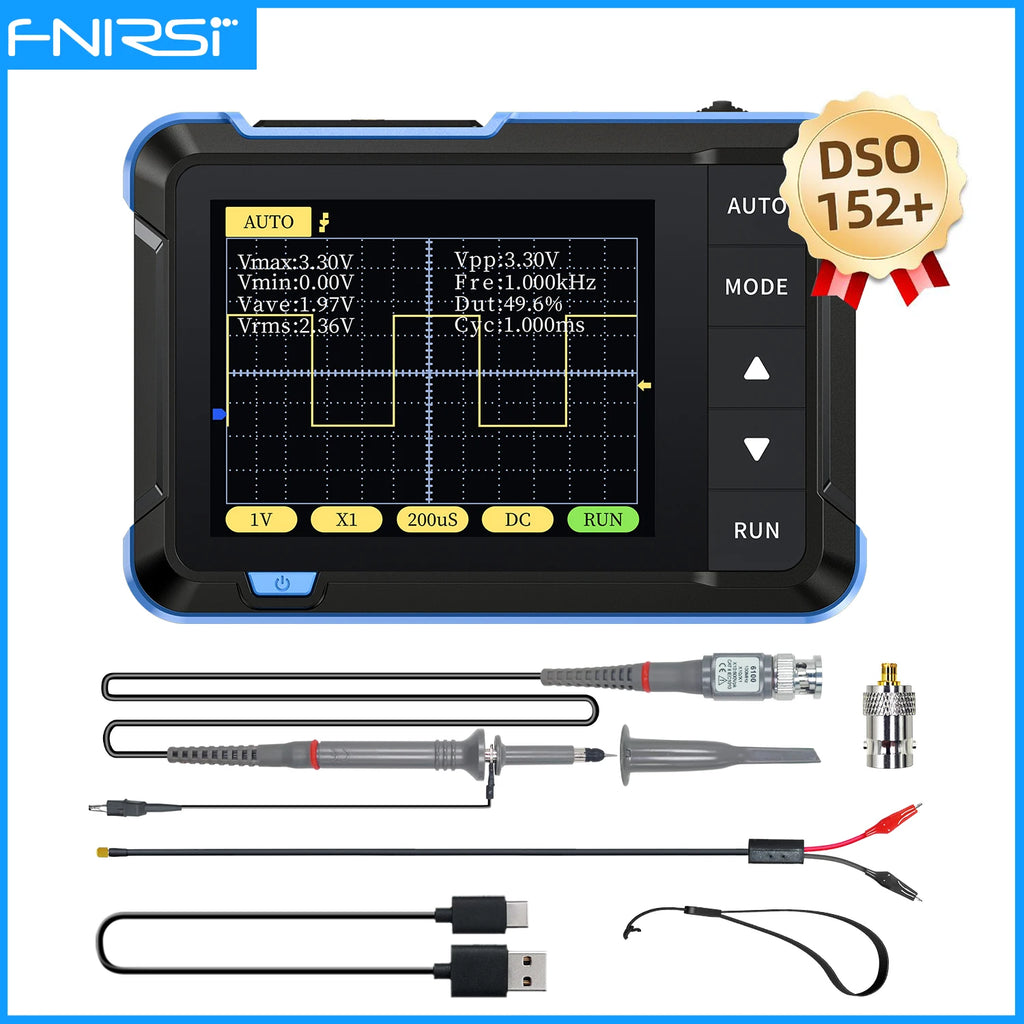

NO.2(Option)
Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
